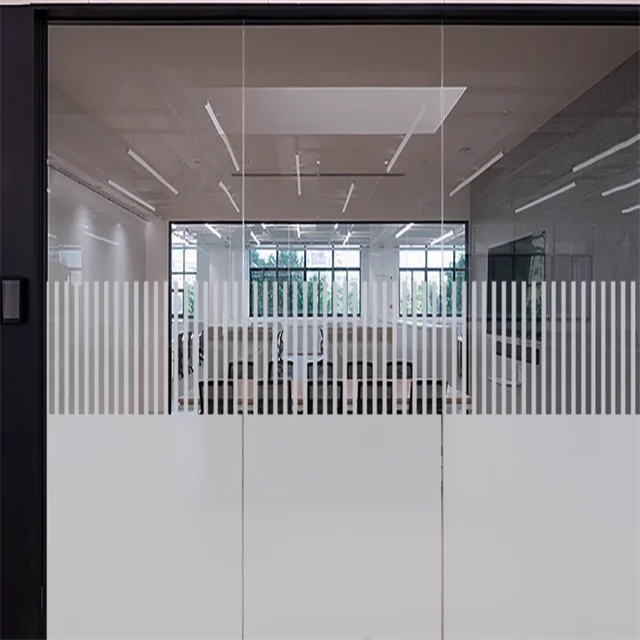

Smart blinds film switchable PDLC smart film

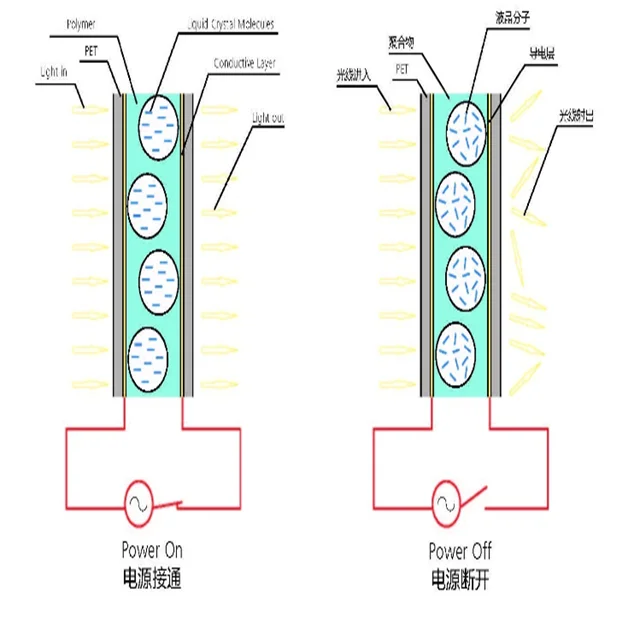

It is a liquid crystal display function film It is in the PDLC dimming film coated with AB glue, affixed to the glass surface; Can achieve dimming film glass penetration and privacy protection .   It uses a polymer dispersion liquid crystal (PDLC) as a display structure It is a two-layer flexible transparent conductive film as an electrode Able to adjust the voltage under the moment to achieve a transparent and opaque switch



It uses a polymer dispersion liquid crystal (PDLC) as a display structure It is a two-layer flexible transparent conductive film as an electrode Able to adjust the voltage under the moment to achieve a transparent and opaque switch

      Product Feature

1. Privacy Protection

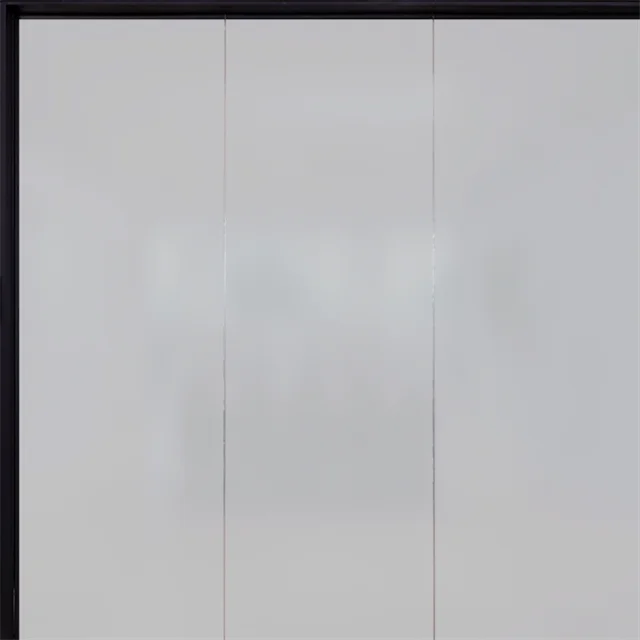

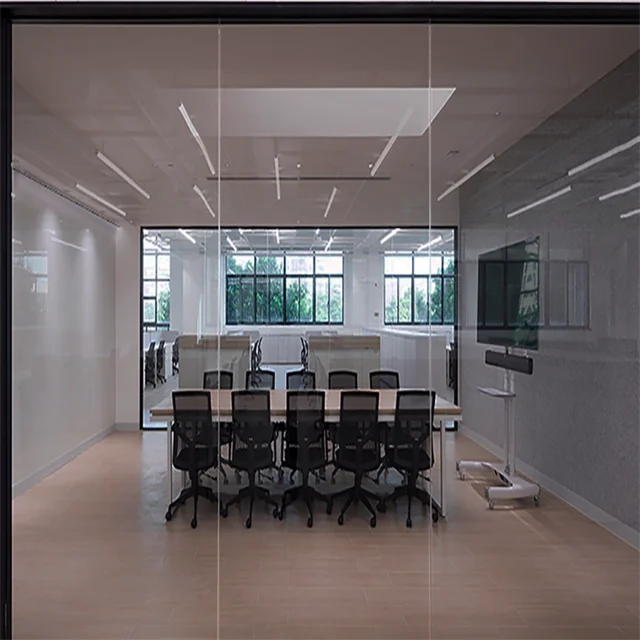

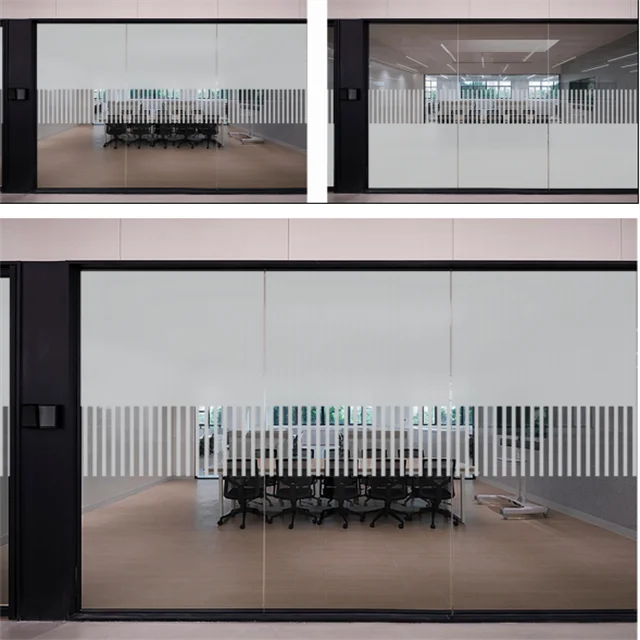

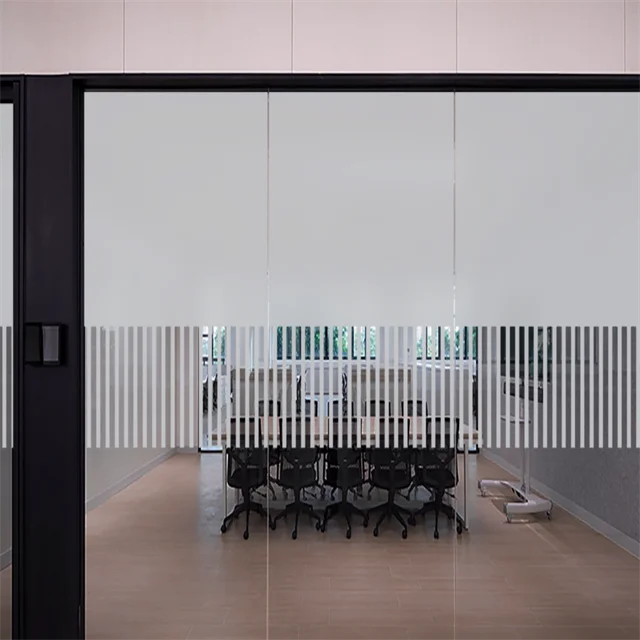

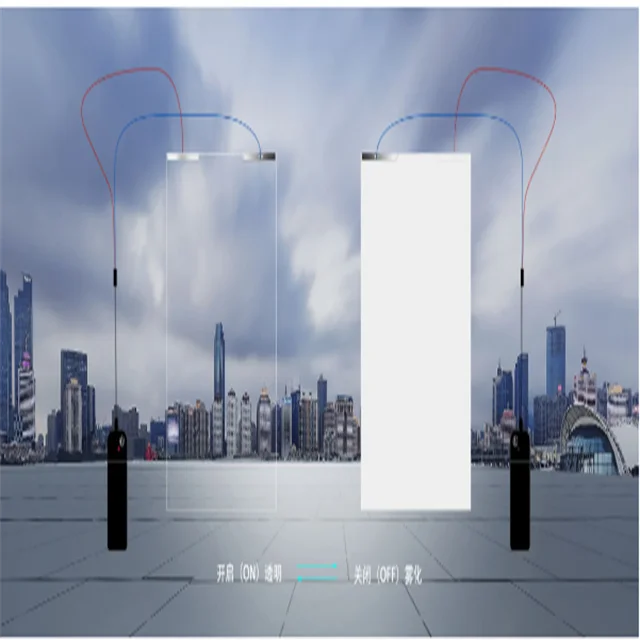

Transparent (Power on), Opaque but light pervious (Powder off) in high switching speed. It’s instantaneous to make the film from completely transparent to fully opaque or vice versa.

2. Energy Saving

Only 5W low power consumption per square meter per hour when power on.

60% infrared blocking, to reduce heat radiation and transfer;

99% of UV blocking, to protect interior furnishings from color-fading or aging, and protect personnel from diseases caused by ultraviolet radiation.

3. Sound Proofing:  >35dB

4. Diversified Control

It can be controlled by wall switch, dimmer, motion detector, light, temperature sensor, remote controller, etc.

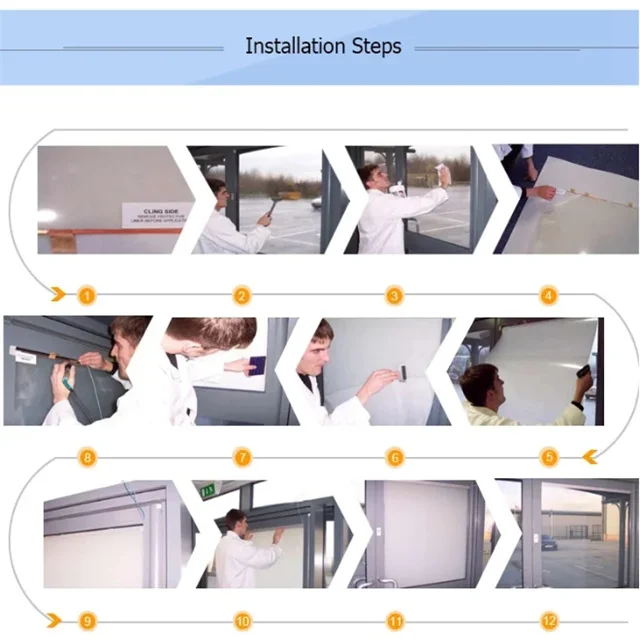

5.Easy installation & controlling mode

With simple structure, low cost, easy installation, and easy controlling mode, there is no need for complicated installation of curtains and subsequent clean-up.

6. Any size glasses are available to be equipped with

Packaging & Shipping



Each glass sheet is separated by high and quality of anti-mildew power.
Before packing, each glass sheet must be inspected to.
Using brand new, durable, seaworthy plywood case with foam protection inside.
Each case will be fasten by metal belt.
