Vacuum Glass Insulated LOW-E Glass Noise-Control Glass

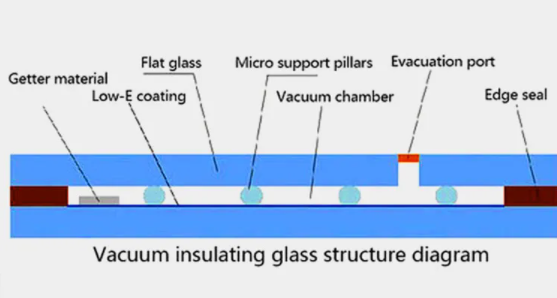

Tempered vacuum glass/ composite vacuum insulating glass It is composed by two or more pieces of flat glass. There are supports between the glass plates arranged in a square array. The two pieces of glasse are sealed by low melting point solder. One of the glass has an exhaust port for vacuum exhaust. Then the gas in the cavity will be exhausted through the exhaust port, and the vacuum cavity is formed.
Sound-proof low-e vacuum glass
Sound-proof low-e vacuum glass

Specification



 Thin and light structure
Compared with insulating glass, the vacuum layer of vacuum glass is only 0.2mm, which is relatively thinner, while reducing the amount of glue and lighter in weight.
Glass varieties
Glass structure
U value W/(m2.k)
thickness mm
weight (kg/m2)
Vacuum glass
TL5+V+T5
0.6
10
25
Hollow glass (Filled with inert gas)
TL5+16Ar+T5+16Ar+TL5
0.8
45
38

Sound-proof low-e vacuum glass

Application



vacuum glass was widely used for doors, windows, curtain walls, and skylights for commercial and residential buildings, public facilities, green buildings as well as landmark structures.



Sound-proof low-e vacuum glass

Sound-proof low-e vacuum glass

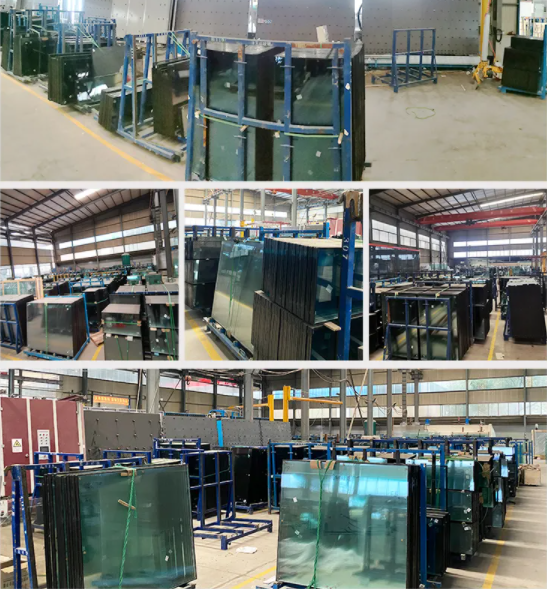

 Produce line



Sound-proof low-e vacuum glass



FAQ

1.How to guarantee quality ?
We always adhere to the principle of "Quality is the core of the survival of an enterprise". We have the strict quality control policy in the whole production process . If there is some quality issue, we will provide the best solutions and always take our responsibilities even though the possiblility is very very low.

2.what you can buy from us?
Our main products are insulation materials include fumed silica vacuum insulation panel for cold-chain logistics, freezer,refrigerator,and high temperature insulation material- flexible nano thermal insulation mat, and high temperature nano microporous panel ,and others for construction and industrial applications.

3.Do you accept customization?
Yes,OEM is okay, we can produce the items based on your own design, for example, size and thickness.

4.what services can we provide?
Customer support service: we provide the best and most professional customer service
Prices andDelivery Terms: FOB, CFR, CIF, EXW, DDP
Payment Currency: USD, EUR
Payment Terms: T/T, L/C, Western Union, Cash

5.How to get the costom samples?
We can provide customized samples and best service, please contact us for more information.
You are welcome to visit our factory!
