Specialized production
Ultra white 4mm solar panel glass
1. good glass and good price
2. quick delivery
Features
1. solar glass is also called photovoltaic glass and energy saving glass which mainly used on solar panel because of its super light transmittance rate.
2. Solar panel is a thin layer of optoelectronic semiconductor which converting solar energy into electricity.
3. By considering its efficiency, we are using High-transmittance and low reflection glass for its panel. This high strength glass maintains the best image quality by elimination unwanted distortions with the advanced optical technology.
Ultra white 4mm solar panel glass , are specially designed for encapsulation material of solar modules. The design reduces the direction reflectance and increase the internal reflection that the solar energy can be absorbed effectively. It ensures the maximum transmittance of the soar and raise the efficiency of electricity generation. The glass observes the properties of high solar transmittance, low absorbance, low reflectance, superior physical strength and significant flatness, is the ideal encapsulation material for solar thermal and photovoltaic modules.
Type | 4mm Ultra Clear Patterned Glass, Tempered sun glass |
Thickness | 4mm |
Size | Min size 450*150mm, Max size 2200*1250mm, |
Further Process | cleaning, cutting, rough grinding, hole, etc. |
Surface | Mistlite single pattern or ultra clear |
Visible light Transmittance | 91.60% |
Visible light reflectance | 7.30% |
Solar Transmittance | 92% |
Solar reflectance | 7.40% |
UV transmittance | 86.80% |
Total solar heat gain coefficient | 92.20% |
Shading Coefficient | 1.04% Performance varied due to different thickness |
Usage | It is widely used as solar power generator, water heater . |

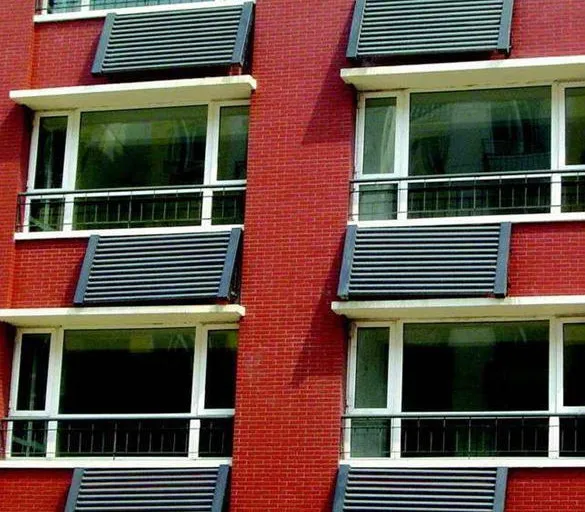

Applications: Solar panel,Solar water heater,solar window,solar building
Qingdao Boruito Trading Co.,Ltd specialize in a variety of glass products for architectural, decorative and residential uses, the main products are solar glass, switchable privacy glass, silver mirror, aluminum mirror,tempered glass, insulating glass, laminated glass, patterned glass, etc. the sales markets have covered over ten countries and have engaged in this line for 15years.
We always use safe strong wodden crates for packing to prevent the glass from breaking.
