ITO conductive glass is manufactured by depositing silicon dioxide (SiO2) and indium tin oxide (commonly referred to as ITO) thin films on the basis of soda-lime or borosilicate glass by using a magnetron measurement method.

How to distinguish the conductive surface and the back of ITO glass.

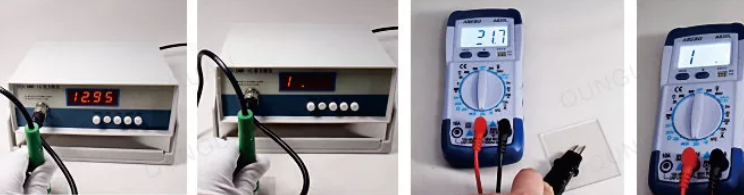

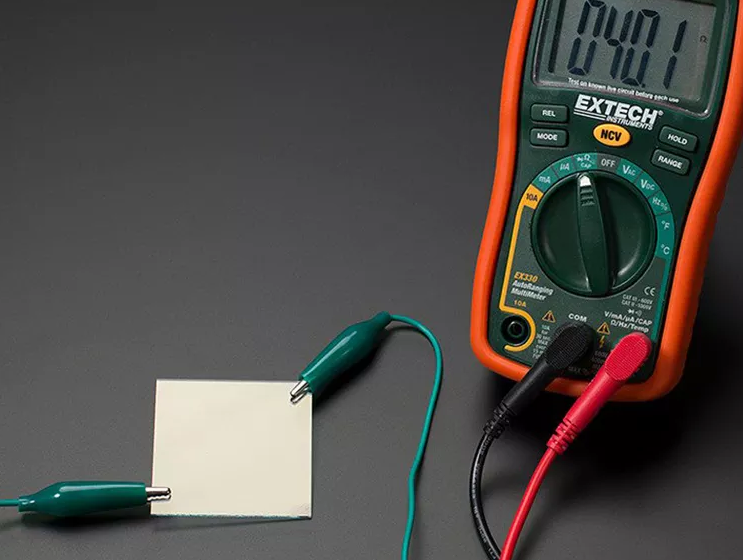

The side where the current flows is the conductive surface of the ITO glass. If you need to test the sheet resistance of the conductive glass, you must use a four-probe tester.

Alkali resistance.

immersed in 60℃, 10% sodium hydroxide solution.After 5 minutes, the square resistance of the ITO layer does not change more than 10%.

Acid resistance.

Acid resistance, immersed in 25℃, 6% hydrochloric acid solution, After 5 minutes, the ITO layer's sheet resistance change value does not exceed 10%.

Solvent resistant.

25°C acetone, absolute ethanol or 100 partsDeionized water, then add 3 parts of EC101 to make a cleaning solution.Then immerse the ITO glass in the cleaning solution. After 5 minutes, the sheet resistance of the ITO layer no more than 10%.

Adhesion.

Attach tape to the ITO film surface and quickly tear it off,The ITO conductive film surface is not damaged;Or quickly tear three time, ITO change of sheet resistance does not exceed 10%.

stability.

After heating for 30 minutes in air at 300°C, ITO conductive surface change of sheet resistance ≤300%.

ITO glass parameters

Product Name:	ITO coated glass substrate, ITO conductive glass slide
Other Names:	Indium Tin Oxide glass, Indium Tin Oxide thin film glass, Indium Tin Oxide conductive glass, ITO thin film coated glass
Standard Size (Length × width):	1" x 3" (25.4x76.2 mm), 1" x 1" (25.4x25.4 mm), 10 x 10 mm, 50 x 50 mm, 100 x 100 mm, 300 x 300 mm (Or specific size, according to customer's requirements)
Standard Thickness:	0.7mm or 1.1mm or 0.55mm or 2.0mm or 3.0mm
Resistance :	4~5 ohm/sq, 6~8 ohm/sq,10~15 ohm/sq,20~30 ohm/sq, 30~40 ohm/sq, 60~80 ohm/sq, 80~100 ohm/sq, 300~500 ohm/sq, or others
Transmittance:	>83%, >84%, >85%, >86%
ITO thin Film thickness:	185nm ( 6~8 ohm/sq); 135nm ( 10~15 ohm/sq)
Glass substrate	Soda-lime glass
Application:	Mobile phone screens, PDAs, calculators, electronic watches, electromagnetic shielding, photocatalysis, solar cells, biological experiments, major university laboratories and other new scientific and technological fields;

We can provide customized services for ITO/FT0 glass, such as precision etching, cutting, drilling and other processing.
