Shutter PDLC smart film glass

Description

PDLC film (smart film,privacy film,magic film,polymer dispersed liquid crystal film) is a kind of high-tech product that can switch from opaque to transparent instantly by electricity access. It turns transparent when power is on and opaque when off. That means the light transmittance through the film can be regulated and adjusted by electricity supply.

Shutter PDLC smart film glass

Specification

Item Description			Patterned PDLC Glass(Tempered Extra Clear)
Optical Test	Transmittance(Visable)	ON	80%+-2%
	Transmittance(Visable)	OFF	60.0%
	Transmittance(Parellel)	ON	>75%
	Transmittance(Parellel)	OFF	<6%
	Haze	ON	<5%
	Haze	OFF	>90%
	Visual Angle	ON	>140°
	UV Resistance	ON	>99%
	UV Resistance	OFF	>99%
	IR Resistance	ON	>15%
	IR Resistance	OFF	>40%
Eletrical Test	Working Voltage	ON	AC 24-36V
	Saturation Voltage	ON	AC 36V
	Response Time	ON-OFF	200ms
	Response Time	OFF-ON	10ms
	Power Consumption	ON	5w/sqm
Environmental Parameter	Working Temperature		-10°C - 65°C
	Storage Temperature		0°C - 40°C
	Service Life		>50000 hours
	Switch Frequency		> 1000000 times

Shutter PDLC smart film glass

Package

Usually:

1.Film in customized sizes with electrode terminal connectors / Busbar Pack in carton boxes

2.Film in roll without electrode terminal connectors / Busbar pack in plywood crates

Shutter PDLC smart film glass

Crystal Liu (Sales manager)

Tel/Mobile	+86 152 6420 5019
Email	crystal AT boruito.com
Whatsapp/Wechat	+86 15264205019

FAQ

Q: Is this product customizable?
A: Yes, we have professional technique team, we could produce this product exactly under your requirements.

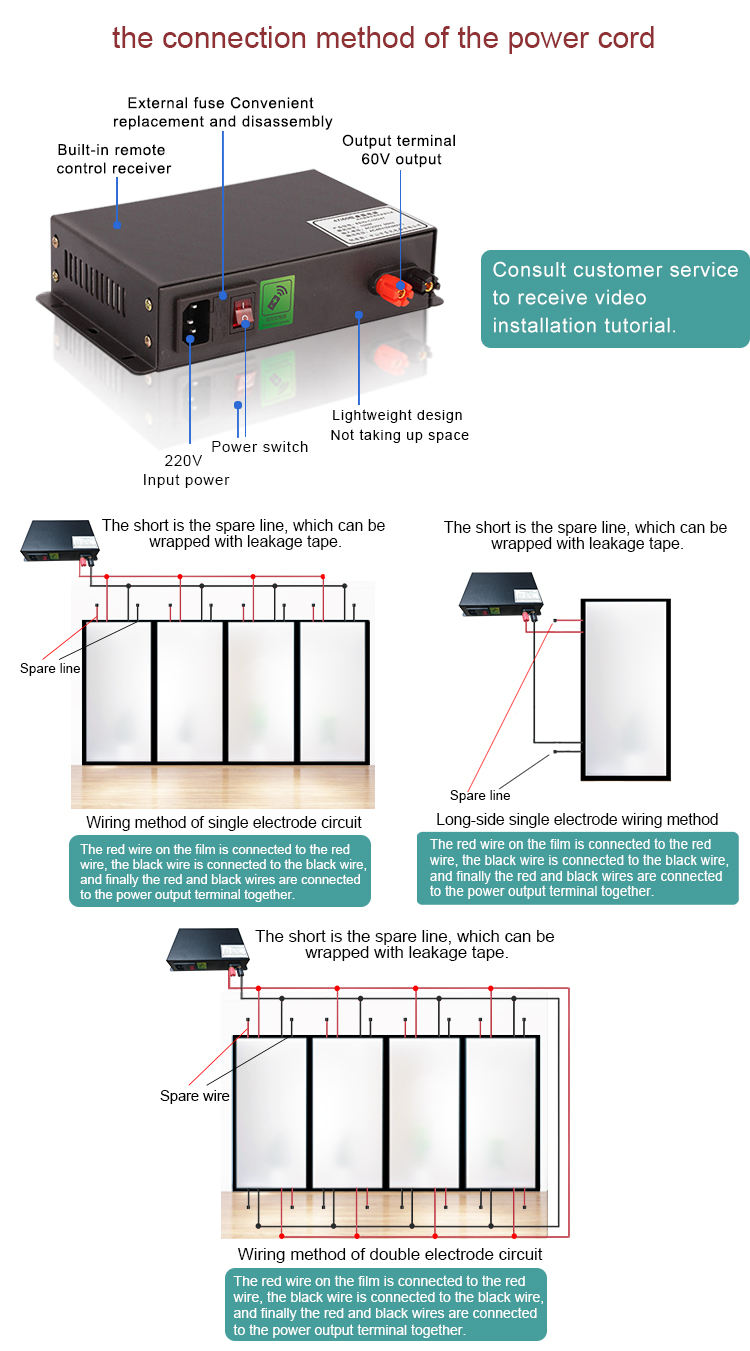

Q:How to make busbar and how to do installation ?
A: We can offer all needed materials,training and installation manuals.

Q:Can you provide free samples?
A: Yes, but if you want big size sample, we will consider to charge basic cost.
