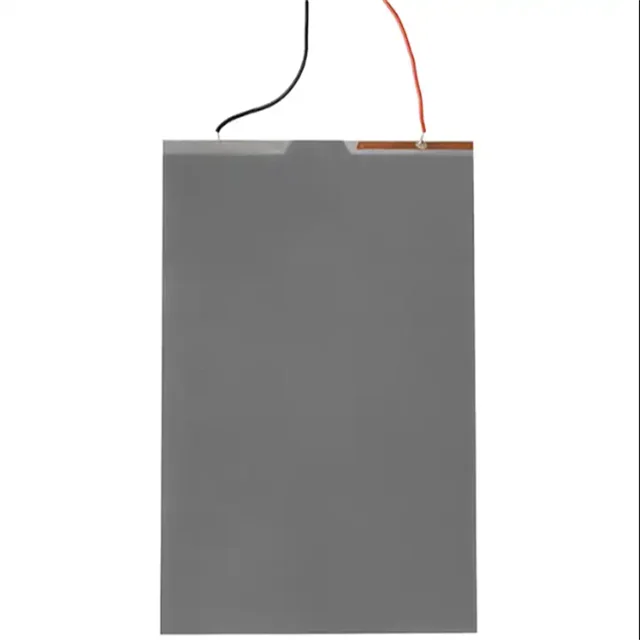

Intlight electric smart film is a kind of film that add liquid crystal polymer composite material in the middle of two transparent conductive film , in the absence of an electric field, the electric smart film isin an opaque state; when the alternating current passes through, the liquid crystal molecules can achieve an orderly arrangement, and the film changes from opaque state (OFF state) to transparent state (ON state). Through the electric field, the electric smart film can quickly switch from the open state to OFF state, and from the OFF state → open state.









Package

FAQ

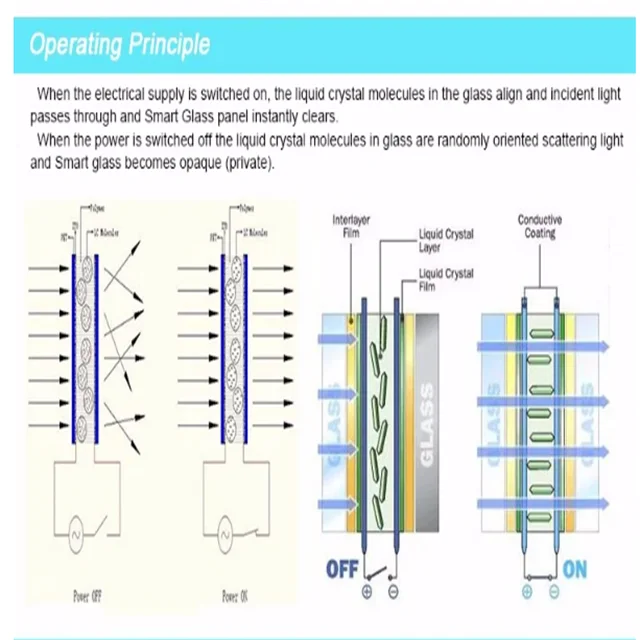

1. How does Smart Film work?

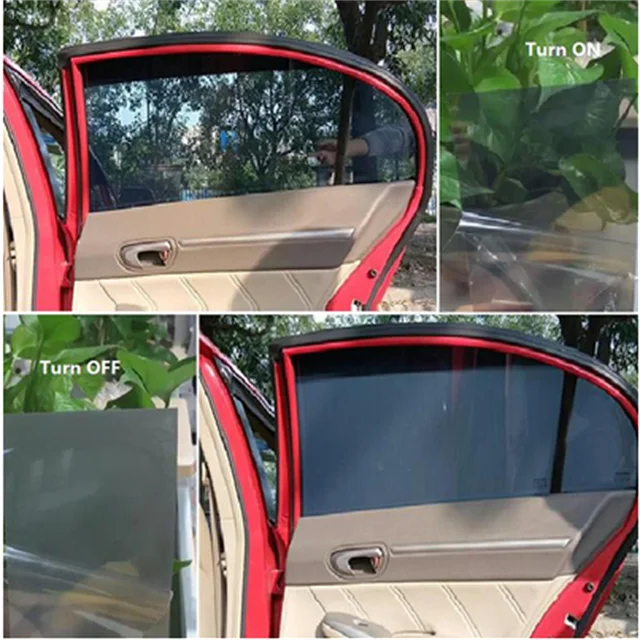

In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.And we can provide the video of installation!

2. What is the product lead time?

Lead time for PDLC Film Products is 7 days after received payment.

3. What is the size of your roll?

For white color: 1.0m, 1.2m, 1.45m, 1.52m width* 30m length,and length can custonized

For grey color: 1.25m, 1.5m width* 30m length,and length can custonized

4. What are your shipment terms?

We deliver it by air/express transportation.

Customer clear custom, release and deliver to final destination.

5. Is there a MOQ (Minimum of Quantity)?

MOQ is flexible, but special color based of 1 roll.

6. What is the expected life of your products?

Life expectancy is approximately 10 years or switch >2000000times.
